INDUSTRIAL AXLE

An industrial axle is an essential component for the proper functioning of many vehicles and equipment used in various industrial sectors, playing a central role in load support, stability, and mobility.

The entire range of industrial axles is available in fixed versions with or without brakes, from 40 to 150 mm square.

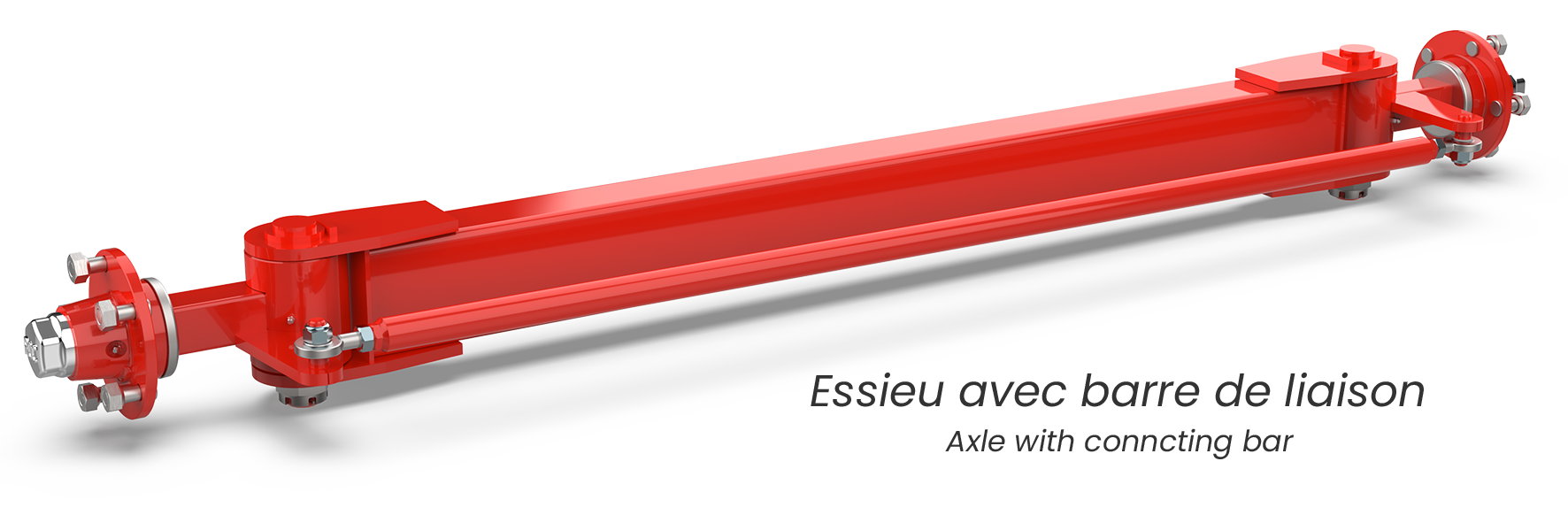

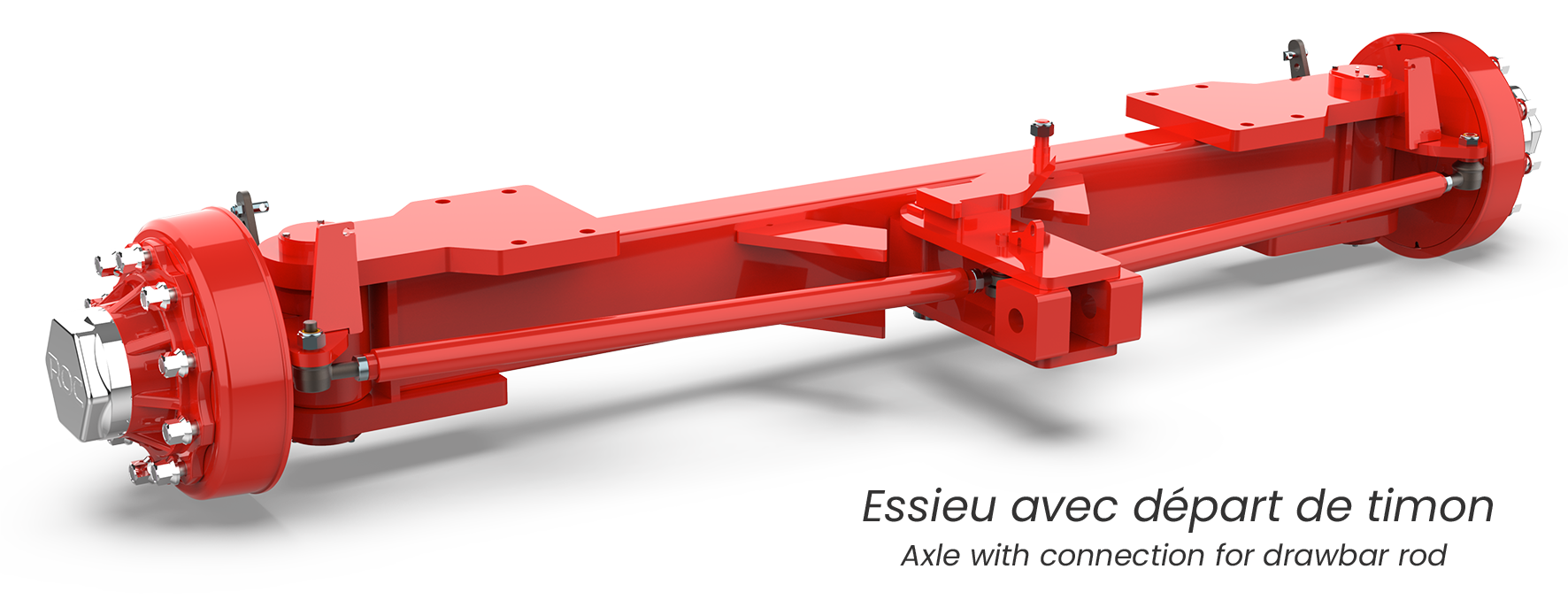

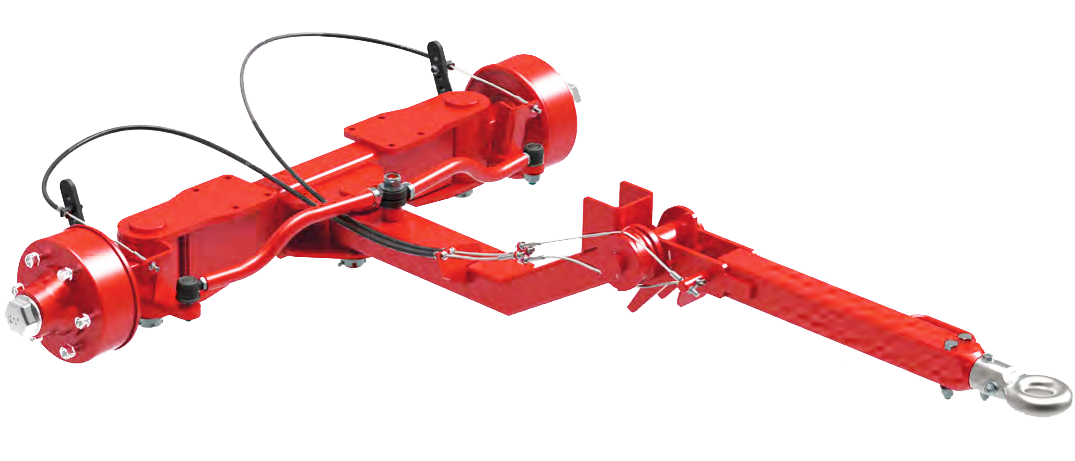

They are also available in steering versions with a tie bar, drawbar start, or double-acting directional cylinder with or without brakes, from 40 to 100 mm square.

With load capacities ranging from 1.5 to 15 tons and a wide steering angle to meet your needs, our axles are suitable for all industrial applications.

We also offer various customization options to ensure a perfect fit for your machines.

Finally, it is equipped with brakes that comply with CEMAGREF, 2015/68 UTAC, or TÜV 40 Km/h standards, ensuring safety and compliance with the strictest regulations.

Customization

Mounting plates	Sealing system on request
Paint	Hydraulic, pneumatic and combination brake actuators
Speed sensors	Offset hub
Adaptable angle sensors

Technical specifications

Square (mm)	From 40 to 150
Axle load (tonnes)	From 1.5 to 15
PCD(mm)	From 84 to 280
Center Bore (mm)	From 115 to 335

Axle stubs : the load on the axle stub is equal to half the load of the equivalent axle.
